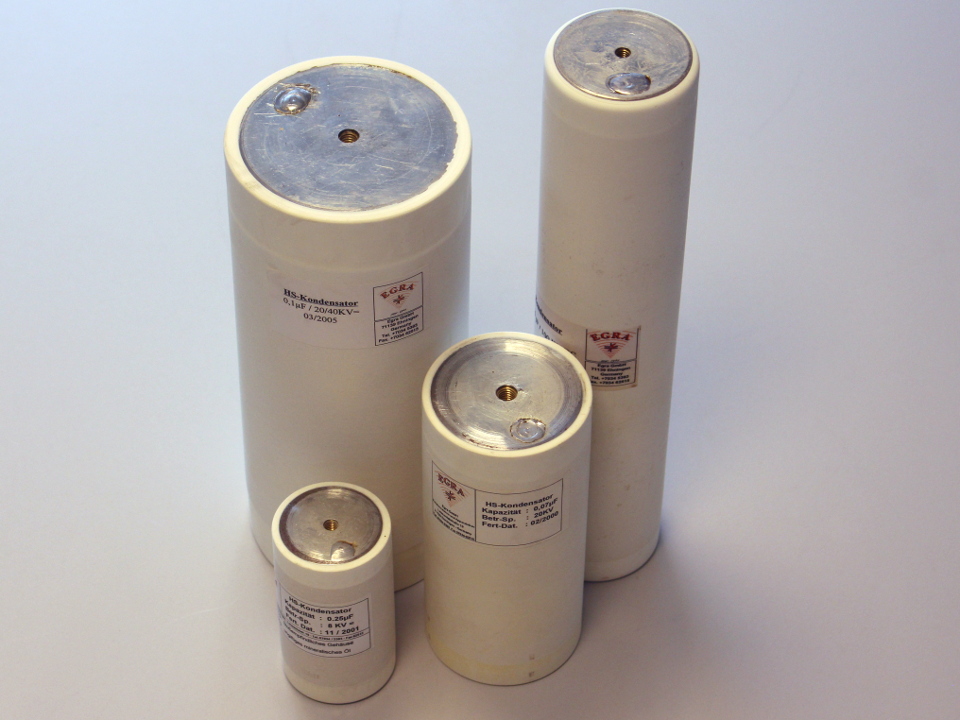

HV-Capacitors 30 KV
| Capacity pF |
Type | Ø approx. mm |
Length approx. mm |
connections |
|---|---|---|---|---|
| 500 pF | HK 30/1 | 30 | 100 | M 5 |
| 1000 pF | HK 30/2 | 35 | 100 | M 5 |
| 2000 pF | HK 30/3 | 35 | 120 | M 5 |
| 5000 pF | HK 30/4 | 50 | 120 | M 6 |
| 10000 pF | HK 30/5 | 60 | 120 | M 6 |
| 20000 pF | HK 30/6 | 60 | 160 | M 6 |
| 50000 pF | HK 30/7 | 90 | 160 | M 8 |
| 0,1 µF | HK 30/8 | 120 | 160 | M 8 |
| 0,2 µF | HK 30/9 | 140 | 160 | M 10 |
| 0,5 µF | HK 30/10 | 140 | 320 | M 10 |
